HIGH POWER LED K-COB DOWNLIGHT 100-250W

Description:

Exclusive Phosphor ceramic light source&multi phase changing heat-sink, good reliability;

Hide-in luminaire design, a totally glare prevention solution;

Multiple B.A optional, suitable for various working environment as terminal, train station, indoor stadium;

N-type explosion-proof level;


Product Detail

PRODUCT FEATURES

● Multi phase changing Heat-Sink
K-COB designed, friction welding no liquid leakage risk

● Private molding light source chamber
Hide-in luminaire design, narrow
B.A. long lighting distance, a
total glare prevention solution


111

● N-type explosion proof level  Bulit-in driver
The internal driver of explosion-proof

● Patented Phosphor ceramic led light source

Exclusive single phosphor-ceramic light source, 55 ,000 hrs lifespan, LM-80 approved, and developing patented in USA /Korea /Japan.

PHOTOELECTRIC PARAMETER

Item No.

Power

Input Voltage

CCT

CRI

Lumen

Efficacy

Beam angle

DLA100

100W

AC90~305V

2200~ 6500K

70~85ra

9000lm

90lm/w

15°,30°,50°

DLA200

200W

AC90~305V

2200~ 6500K

70~85ra

18000lm

90lm/w

15°,30°,50°

DLA250

250W

AC90~305V

2200~ 6500K

70~85ra

22500lm

90lm/w

15°,30°,50°

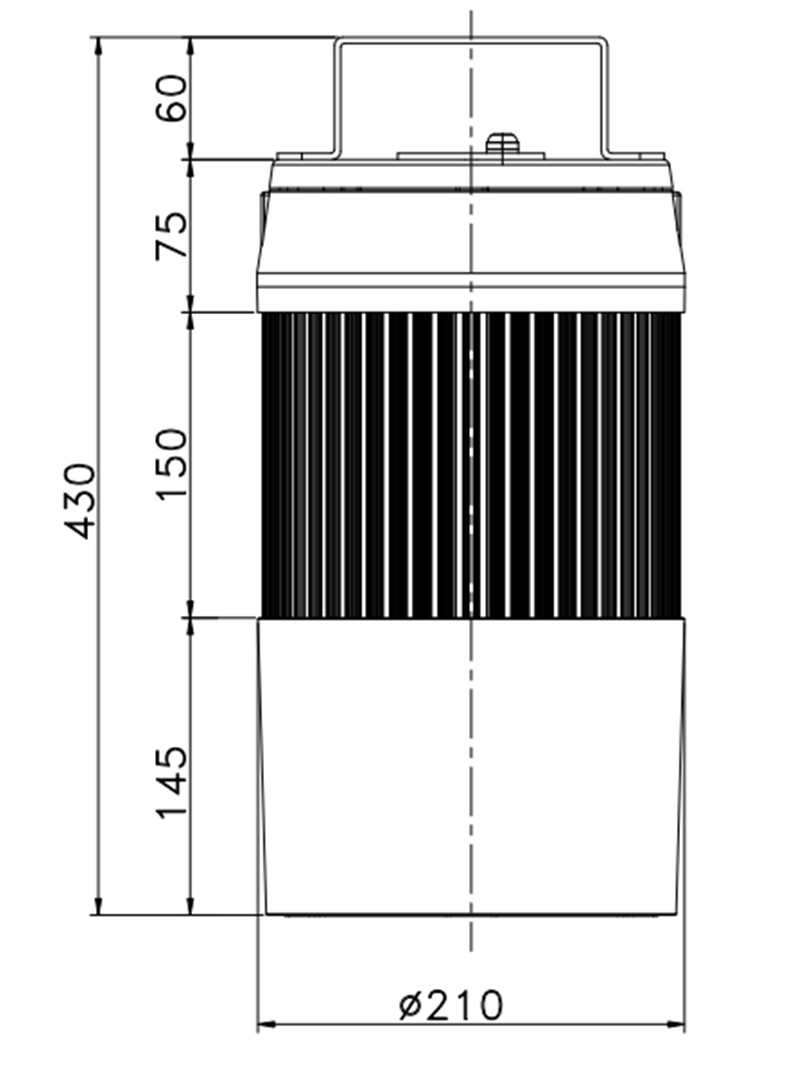

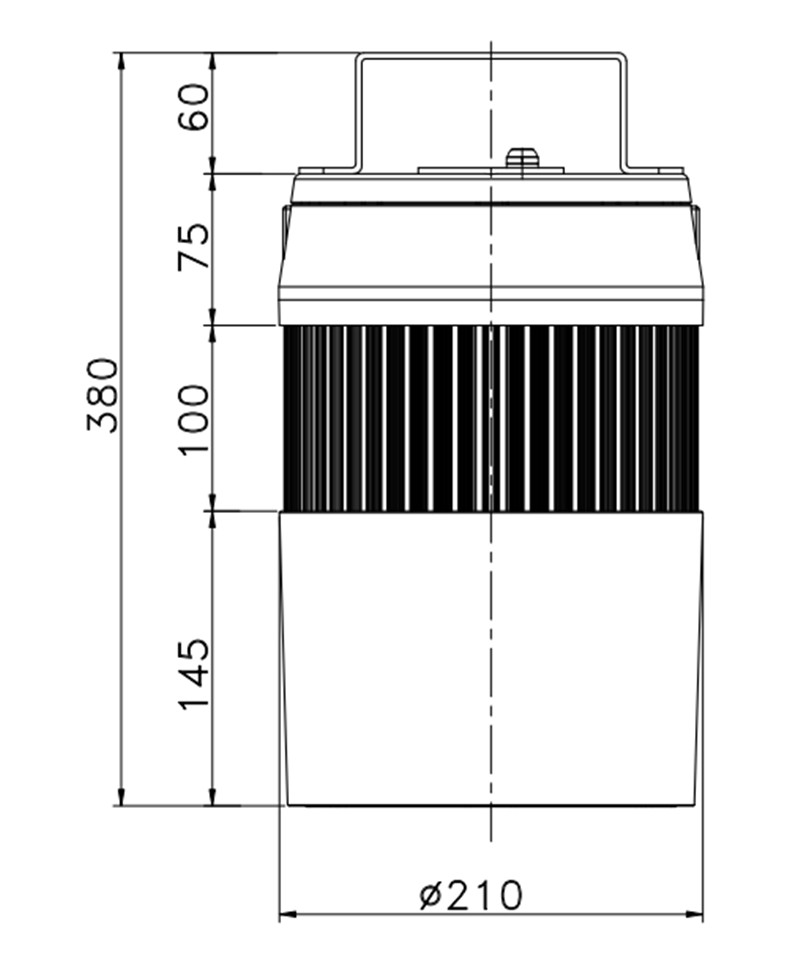

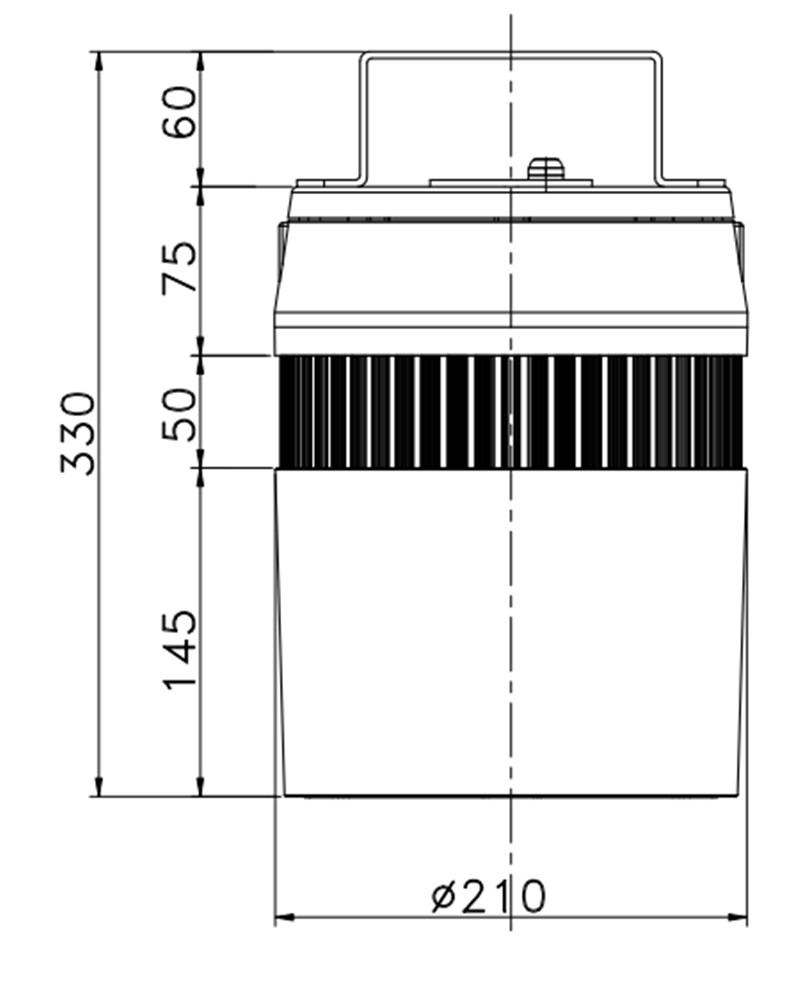

DIMENSIONS DRAWING

14

Model:DLA100

15

Model:DLA200

16

Model:DLA250

K-COB Surface-mounted DOWNLIGHT 100-250W is brand new offering to accommodate extremely high ceiling such as train station, airport terminal.,ect with leading efficacy , design compactness and good reliability.

This LED downlight from K-COB LED Lighting that offer higher lumen outputs ranging from 9000 to 22500 lumens. k-COB LED downlights are a range of high quality products that are cost effective and reliable.

Features multi-phase changing heat-sink technology that combines the latest highly efficient k-cob LED chips with an aluminium heat sink that dissipates heat faster than competitor’s. This combination allows for a more effect brighter light output without compromising on longevity.

Benefits:
Product which delivers visual comfort and stylish design
Creates a gentle, natural light, ensuring visual comfort.
