K-COB LED FLOOD LIGHT 100W-300W

Description:

Various light distribution by high boron glass lens suitable for street, tunnel and other flood lighting;

Driver of top brand, good reliability (build-in driver suitable for the application of air-port,port and terminal);

Compact housing structure with AL6063 aluminum heat-sink, IP65 standard;

Smart control system compatible;


Product Detail

PRODUCT FEATURES

● High boron glass lens
Various light distribution by high boron glass lens, suitable for street/tunnel lighting and regular floodlighting

● Inventronics drive
Inventronics drive,top brand, high quality (external drive model is available)

18

● Multi-phase Changing heat-sink
Reserved for K-COB light source,the temperature between the top & bottom is just 2℃

● Patented Phosphor ceramic led light source
Exclusive single phosphor-ceramic light source, 55 ,000 hrs lifespan, LM-80 approved, and developing patented in USA /Korea /Japan.

LIGHT SOURCE

esawfdessf

K-COB is a unique LED packaging pattern -- by using exclusive Phosphor ceramic to replace traditional silicone and phosphor, this brand new generation LED light source brings better reliability and extremely low lumen decay.

PHOTOELECTRIC PARAMETER

Item No. Power Input Voltage CCT CRI Lumen Efficacy Beam Angle
FLA250(H) 250W AC90 ~ 305V 2200~ 6500K 70~85ra 32500lm 120~150lm/w 60°,90°,120°
FLA300(H) 300W AC90 ~ 305V 2200~ 6500K 70~85ra 39000lm 120~150lm/w 60°,90°,120°

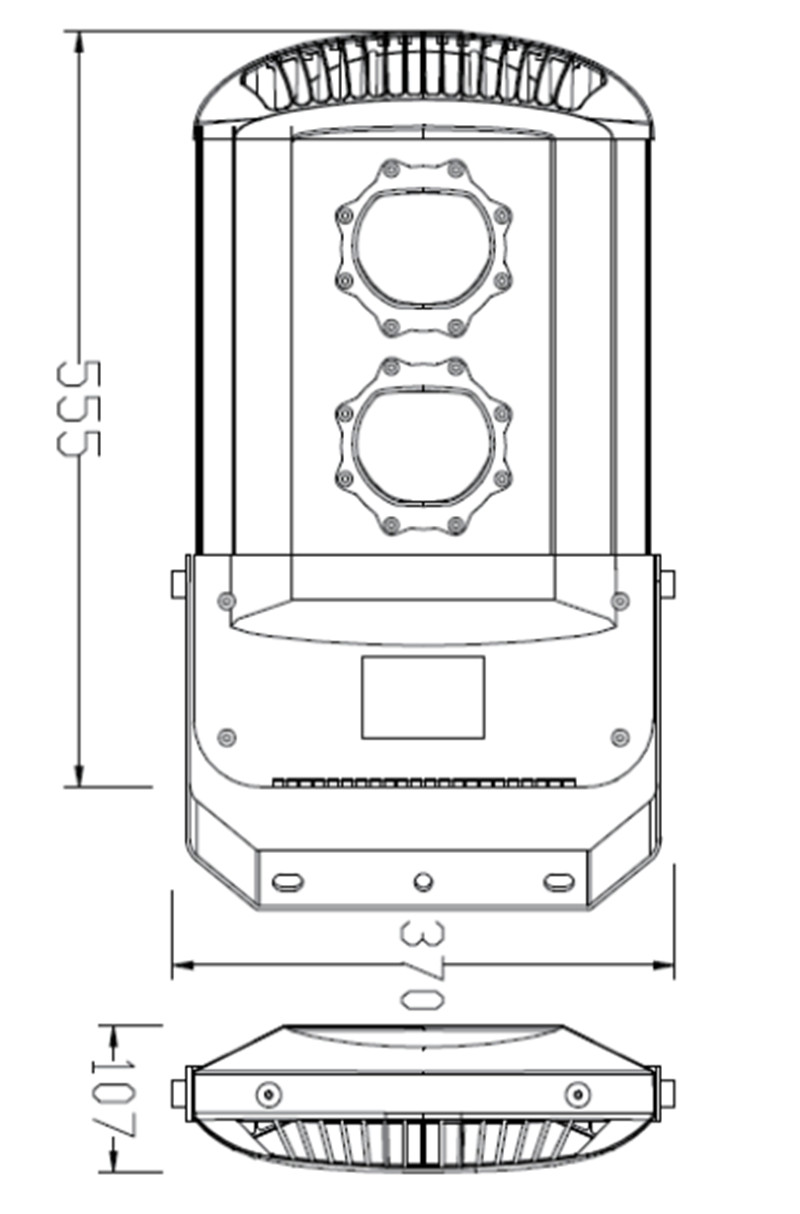

DIMENSIONS DRAWING

17

Model No.: FLA250(H)

【World exclusive LED Chips】With k-cob LED chips, this 100-300w K-COB LED Flood Light produces up to 39000lm high brightness(2600W Incandescent Equivalent) and saves 88% on your electricity bill of lighting. It provides not only shadow-free and anti-glare lighting but extra safety.

Robust die-cast aluminum housing ensure the excellent heat dissipation and long-lasting performance. And the floodlight is designed with Multi-phase Changing heat-sink,the temperature between the top & bottom is just 2℃.

Unlike the PC/PMMA lens that adopted by normal SMD tunnel light makers, the tiny borosilicate glass lens we applied will never get aged nor deposition, the light coming out from it has the best shape and definitely glare free to human eyes.

The built-in driver design provides additional protection for salty, humidity environment such as seaside or dock. No more worries on the potential risk.

The lifespan(55,000 hours) of this floodlight is ten times that of the traditional incandescent light. IP66 protection rating means our floodlight is perfect for outdoor locations, like walkways, yards, patios, parking areas, stadiums, driveways, etc.
