K-COB LED EXPLOSIVE PROOF LIGHT 100-200W

Description:

EXd explosion proof standard;

Reliable structure:3 individual chamber for PSU,cable, light source;

Suitable for explosive gas environment IIA, IIB and IIC, temperature range T1-T6;

Applications:chemical workshop, mine, oil field, etc.


Product Detail

PRODUCT FEATURES

● Aluminum heat sink
Chimney transparent design, better heat sink

● Tempered glass lens
Arc tempered glass, prism design ,4J impact proof, heat proof, light transmittance >95%

K-COB LED EXPLOSIVE PROOF LIGHT06

● Built in Inventronics drive
Inventronics drive,top brand, high quality

● Patented Phosphor ceramic led light source
Exclusive single phosphor-ceramic light source, 55 ,000 hrs lifespan, LM-80 approved, and developing patented in USA /Korea /Japan.

● Private molding
Threaded explosion proof structure,
three individual chambers for PSU, cable and light source, high reliability, IP 66

Suitable for explosive gas area 1,2area IA、IIB、 IIC explosive gas condition.

LIGHT SOURCE

esawfdessf

K-COB is a unique LED packaging pattern -- by using exclusive Phosphor ceramic to replace traditional silicone and phosphor, this brand new generation LED light source brings better reliability and extremely low lumen decay.

PHOTOELECTRIC PARAMETER

Item No. Power Input Voltage CCT CRI Lumen Efficacy Beam Angle
U10B100 100W AC90 ~ 305V 2200~ 6500K 70~80ra 9000lm 90~100lm/w 90°,120°
U10B150 150W AC90 ~ 305V 2200~ 6500K 70~80ra 13500lm 90~100lm/w 90°,120°
U10B200 200W AC90 ~ 305V 2200~ 6500K 70~80ra 18000lm 90~100lm/w 90°,120°

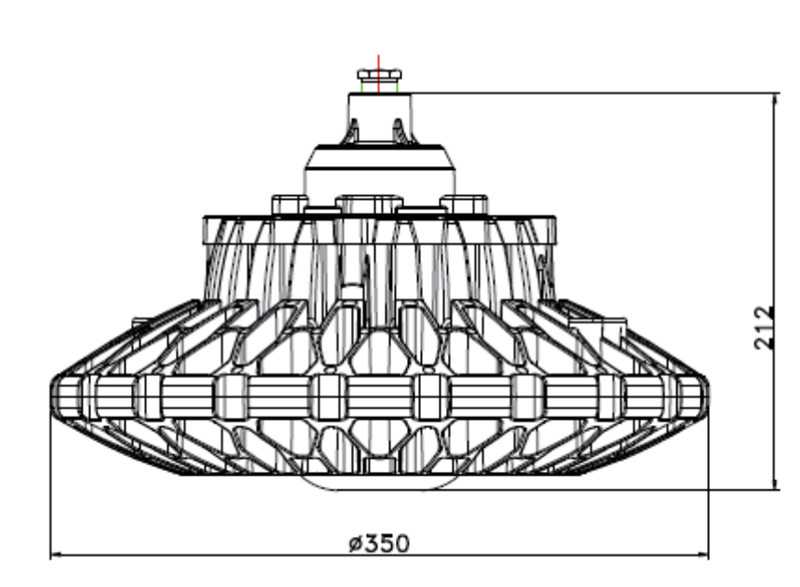

DIMENSIONS DRAWING

K-COB LED EXPLOSIVE PROOF LIGHT09

We offer K-COB LED EXPLOSIVE PROOF LIGHT 100-200W certified for use where ignitable concentrates of gases, liquids and vapors exist under normal operating conditions. Approved for use in Class 1, Division 1, Groups A, B, C and D environments, our explosion-proof fixtures are designed and tested to perform in dangerous environments.

Our durable, corrosion-resistant lights provide superior illumination and protection in any circumstance. All explosion-proof LED fixtures deliver energy efficient, maintenance-free light. Suited for installation in a range of locations that include facilities where hazardous materials are present continuously, periodically or during repair and maintenance operations.

Applications
Mining applications: Mining and coal production & processing, gasoline dispensing and service stations, petroleum and chemical refineries, land drilling rigs and fuel depots

Marine applications: Petroleum and chemical transportation barges, offshore drilling rigs and platforms, oil and chemical tankers, shipyards, marinas, offshore supply vessels

Industrial applications: Water treatment plants, chemical rooms, power plants, grain processing and storage, paper and pulp mills, paint spray booths, refineries, solvent & cleaning areas and chemical manufacturing
