High Power LED COB Chip Light-emitting Diode 300W 400W XY-L47 SERIES COB LED price

Description:

Small light-emitting size(LES), high light density, led light white,400 watt led light

Good heat dissipation: patented “dual heatsinking channel” structure, guarantee the thermal performance.

High lumen intensity, LM80 approved;light for stage

Good resistance to force impact, temperature, humidity and PH change ;

Suitable for high mast light, sports light and other long distance lighting fixture;


Product Detail

Specification

Item No.

Rated Power(W) Forward Voltage Vf(V) Rated Currency IF(mA) Max Input currency(mA) CRI(Ra) Color Temperature(K) Efficiency Im/wBased on 70ra

XY-L4730

300

105

2700

2850

70/80/90

2000-6500

165lm/w

XY-L4740

400

105

3600

3800

70/80/90

2000-6500

160lm/w

Dual heatsinking structure:

The heat could be radiating from both PCB directly and laser ceramic surface by sapphire. This dual heatsinking structure allows us to make COB at smaller size but higher wattage and better reliability.

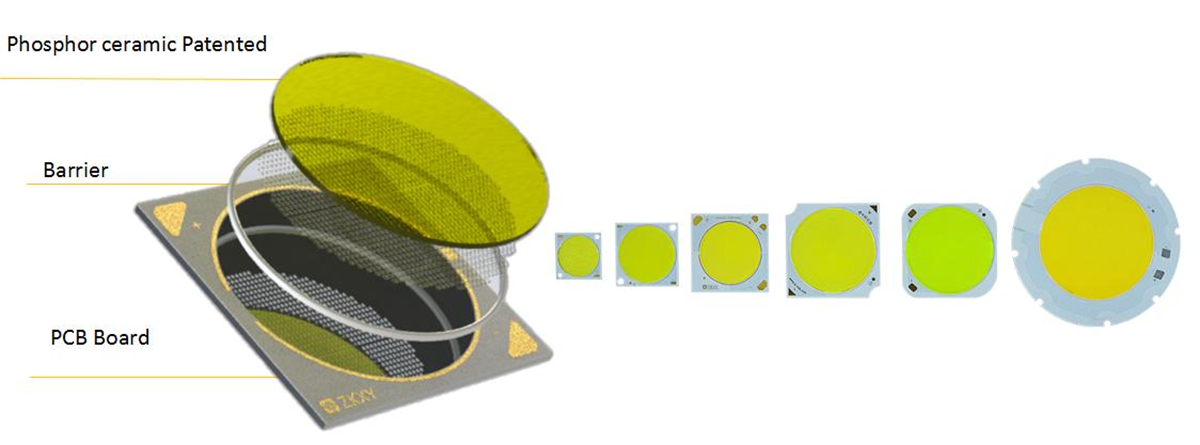

COB Dual Heat Sinking Channel



LM80 approved:  One and only supplier who gets LM80 report for 600w single chip

Application:  Suitable for fixture requiring for narrow B.A angle&long distance. Such as port, stadium, and other high mast application

LM 80 approved 600w



Copper PCB Board: 2 times higher heat dissipation than aluminum PCB

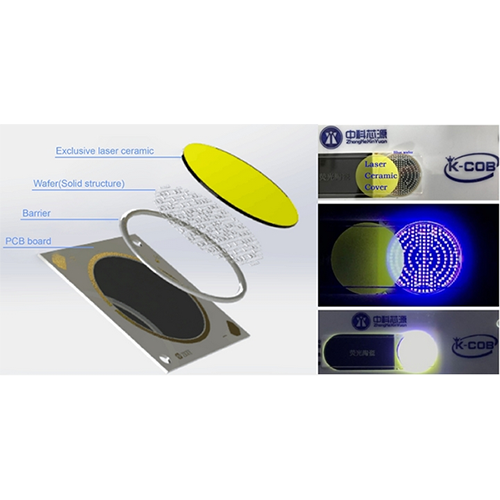

Patented laser- ceramic:  Laser ceramic developed by CAS, high temp resistance and conductivity, perfect replacement for traditional phosphor in the led chip.

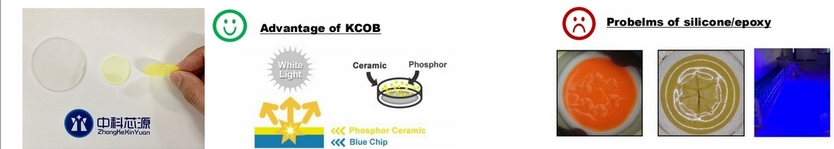

New generation LED lighting



Extra high power: Maximum power of single COB could be up to 1300w

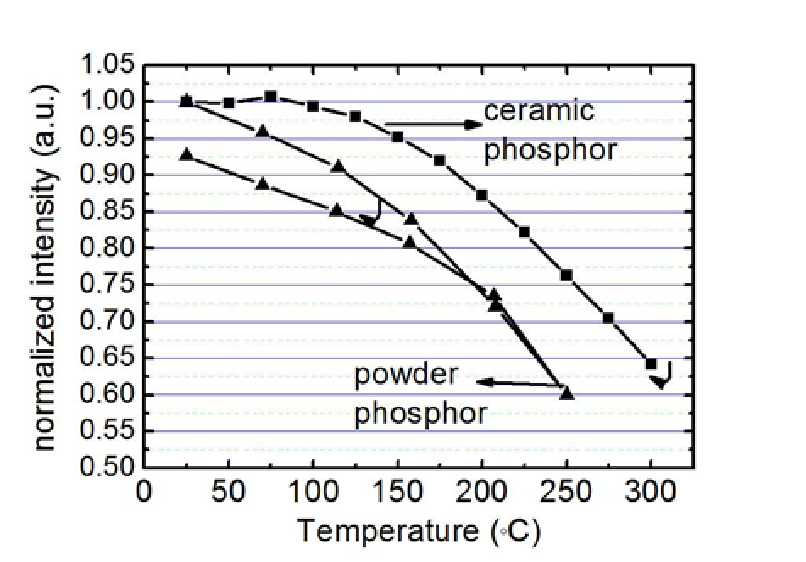

KCOB ceramic characteristic curve: The phosphor ceramic can return to the original state even after 300 ℃. While the phosphor powder can not be back after 250 ℃, the performance would remain in the  decaying state

COB INTENSITY

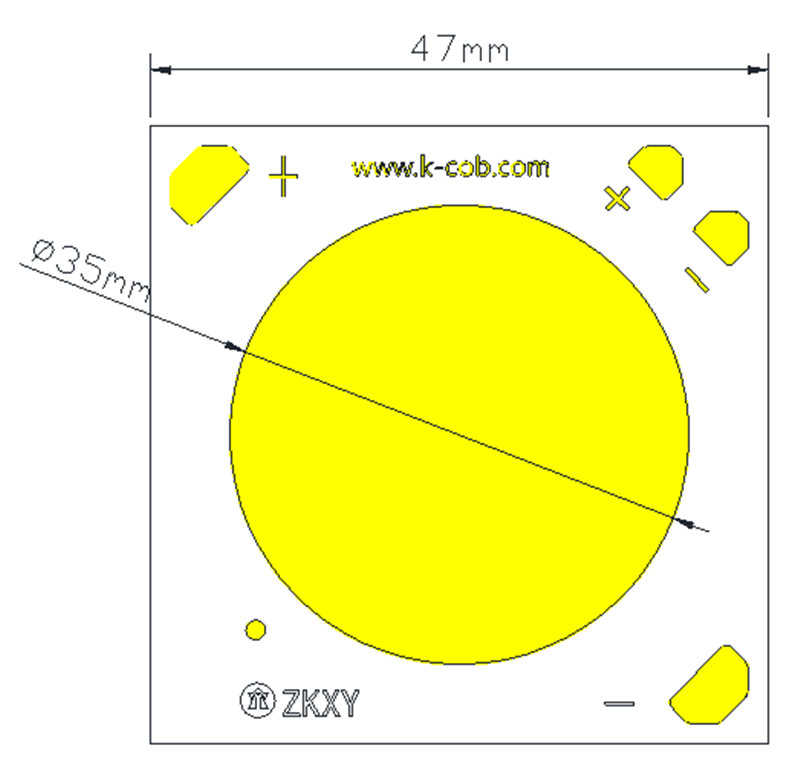

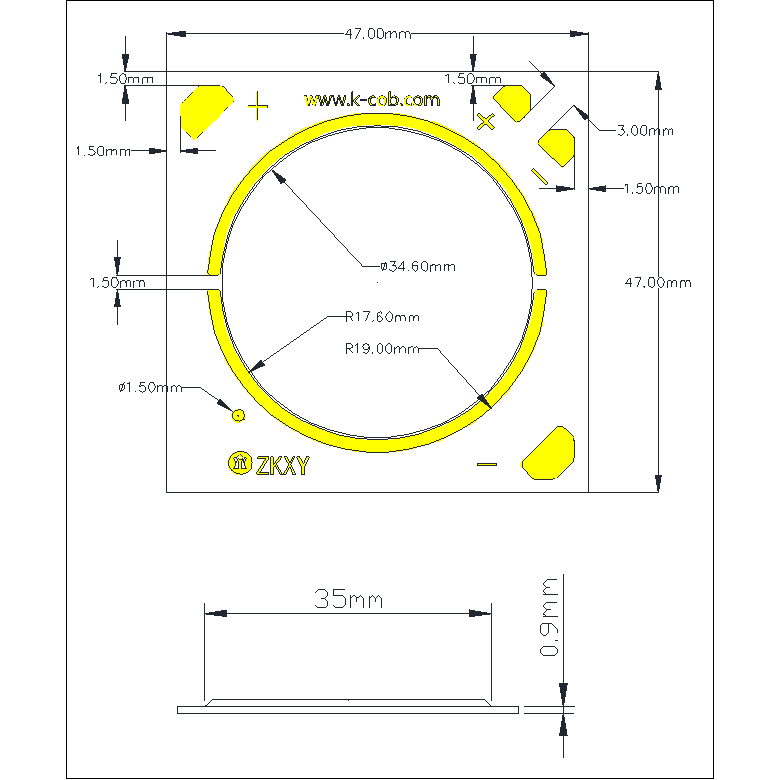

 DIMENSIONS DRAWING

*Size & Circuit is customizable based on the requirement

K-COB (Maximum power for single chip could reach 1600w)
K-COB LED arrays provide the industry’s best lumen density and efficacy for metal-based chip-on-board (COB) LEDs in industry-compatible footprints and LES sizes. This COB family features an innovative exclusive patent phosphor ceramic technology as well as dual heat-sink technology to deliver higher reliability and output than competing products. The K-COB LED arrays include 10 LEDs across three (9.8 mm, 14.5 mm and 22 mm) LES sizes with standard color options of 70, 80 and 90 CRI. Premium color options that include high fidelity (98 CRI) and specialty color points are available to deliver color quality without compromise in efficacy, lumen density, color consistency and reliability.

The K-COB Series is a comprehensive range of metal-based COBs available in various LES, CRI, CCT, efficacy, and drive current options. The heat could be radiating from both PCB directly and laser ceramic surface by sapphire.
This dual heatsinking structure allow us make COB at smaller size but higher wattage and better reliability.
The Phosphor ceramic is the high heat conductivity rate: 13.367W/m.k, 75 times of traditional phosphorus powder (YAG 05+sil1018), which ensures excellent lumen maintenance and color stability even in high lumen applications. Tight color binning ensures fixture-to-fixture uniformity. A 97 CRI (90 R9) version is available for color-critical applications.

Please contact send us an email to ask for more recommendations, help and advice for your lighting projects
