(1) Significant increase in fishing production

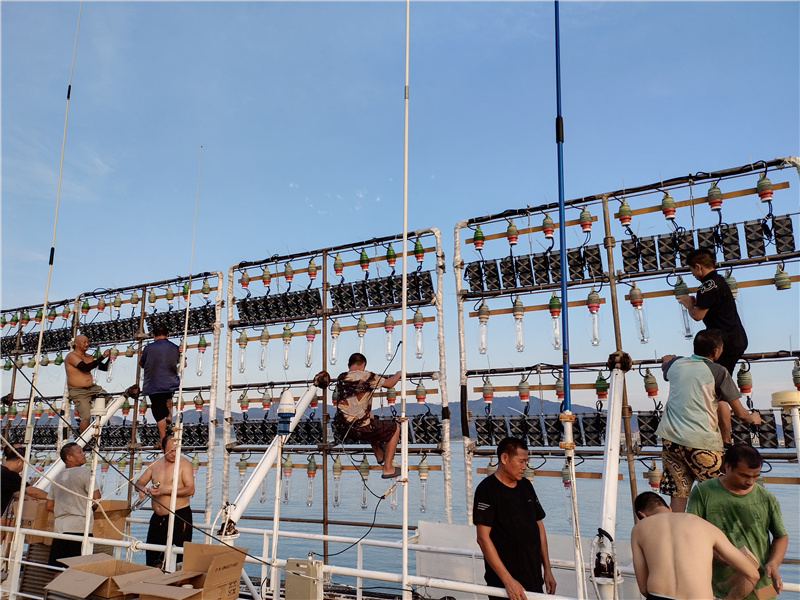

In this deep-sea fishing operation, while retaining the original 200 1000W gold halide lamps on the boat, 28 multi-COB integrated light source 300WLED fishing lights were installed on both sides of the boat. During the sea trials, the researchers compared the fishing effects of the halide and LED lights with the boats: the single net catch increased from 2000 jin to 4000 jin after the use of 6kw -10kwLED lights, and the yield doubled, indicating that the light emitted by the LED lights is more attractive to fish.

(2) The energy saving effect is remarkable, which can r educe energy consumption by 70% and significantly increase the time to sea.

After 6kw -10kw  LED fishing lights were used to replace 1000W of traditional gold halogen fishing lights, the lighting energy consumption of fishing boats was reduced by 70%. 6kw -10kw LED fishing lamp adopts side light emitting mode. Through special light source heat dissipation and secondary light distribution design, it can ensure the long-term lighting effect of high lumen and low light decay, and most of the lights will shine on the sea. The effective average illuminance, irradiation distance and irradiation area of the sea surface, as well as the penetration ability of light to sea fog and sea water are all superior to the traditional gold halide fish lamp, and the actual light effect into the water is as high as 80,000 lumens (the traditional halide lamp is only about 20,000 lumens).

(3) The service life is significantly extended, and the maintenance cost is significantly reduced.

The service life of LED fish lamp is as long as 30,000-50000 hours, while the service life of traditional halogen lamp is generally not more than 3000 hours, so in the process of use, greatly reduce the cost of equipment replacement and maintenance per unit time.

(4) The weight and volume are significantly reduced, and the overall equipment quality is reduced by 80%.

The whole weight of 6kw -10kw LED fish lamp is less than 2kg, while the single weight of the traditional 1000W halogen lamp is more than 10kg. A normal boat needs 300 to 800 lights, and a small fishing boat needs 30 to 120 lights, so a heavy light hanging on the boat will affect safety.

(5)LED fish light is non-toxic, harmless and environmentally friendly.

Reports show that long-term use of halogen lamps will do harm to human body and Marine organisms, especially when looking directly at halogen lamps will have a great impact on vision. The new LED fish lamp is non-toxic and environmentally friendly.

Highlight display of 6kw -10kw LED fish lamp

(1) Multi-CoB integrated light source

The sea test shows that the multi-COb integrated light source 6kw -10kw LED fish lamp product has excellent performance and application effect. As a technology that can directly integrate multiple LED chips into the substrate, COB technology has a simple process and high integration degree, which can make high-power LED lamps by using low-power chips. COB light source has the excellent characteristics of high luminous efficiency, high display finger and uniform luminescence, which represents the future development direction of LED lighting.

(2) Microslot group complex phase change cooling technology.

The heat flux of COB light source is high because of the high integration of LED fish lamp chip, and its heat dissipation is a worldwide problem. The complex phase transition heat dissipation technology of microtank group in Institute of Engineering Thermal Physics of Chinese Academy of Sciences has solved this problem.

(3) side luminescence mode

6kw -10kw LED fishing lamp adopts side light emitting mode. Through special light source heat dissipation and secondary light distribution design, it can ensure the long-term lighting effect of high lumen and low light decay, and most of the lights will shine on the sea.
