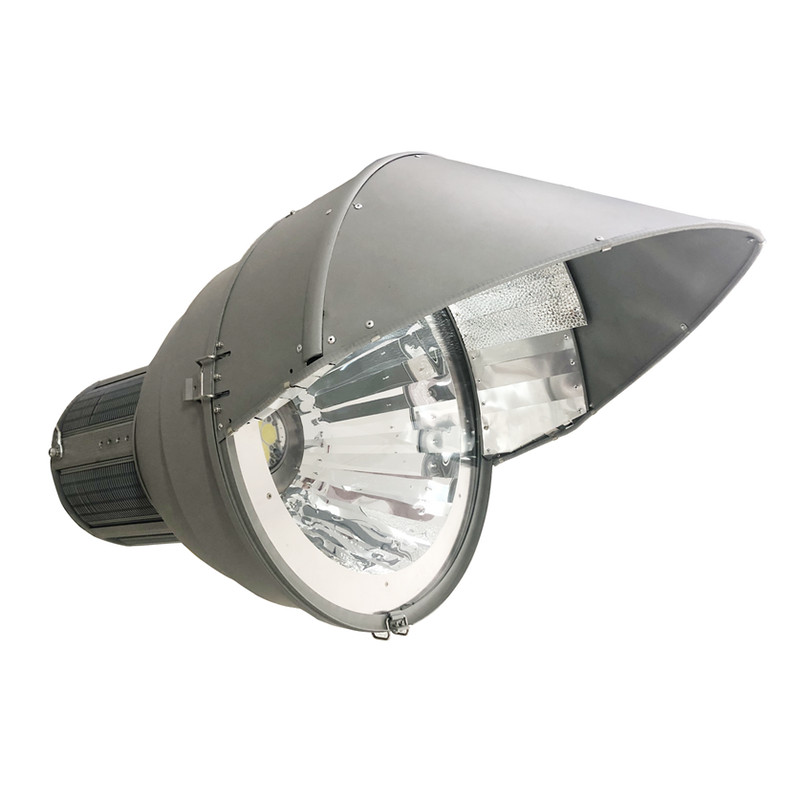

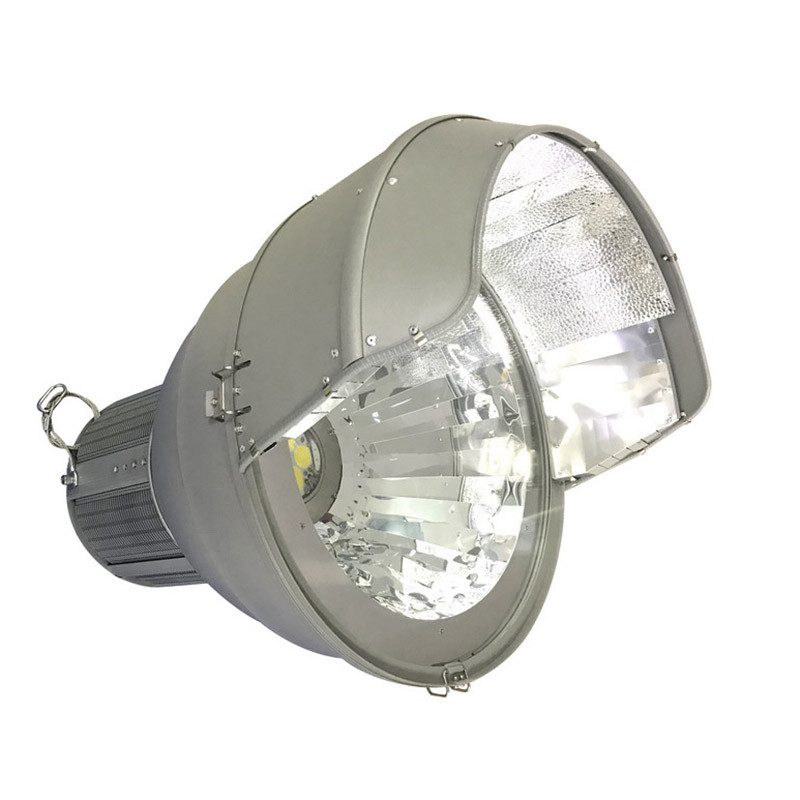

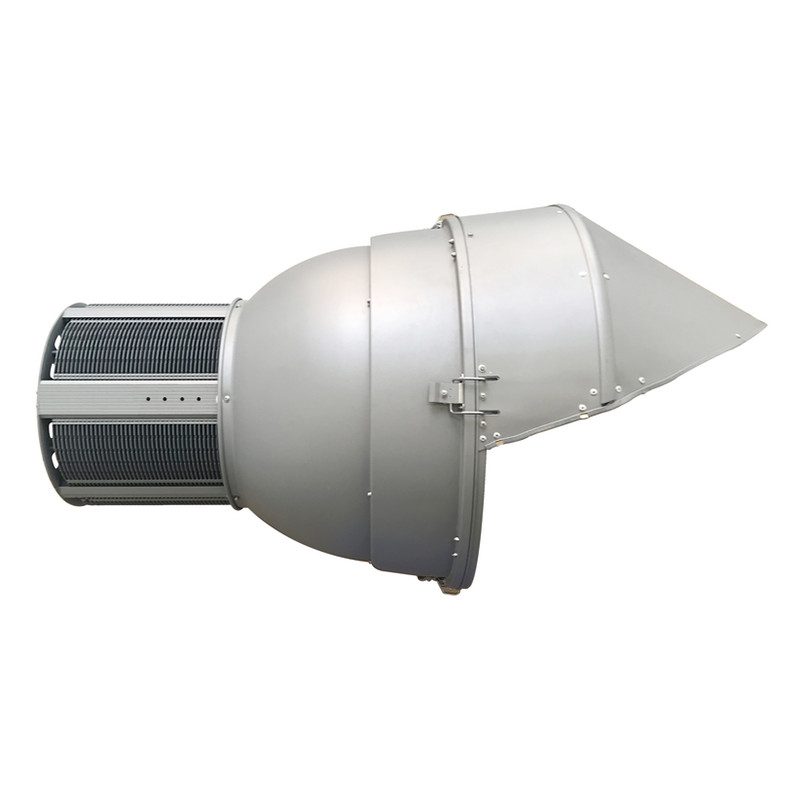

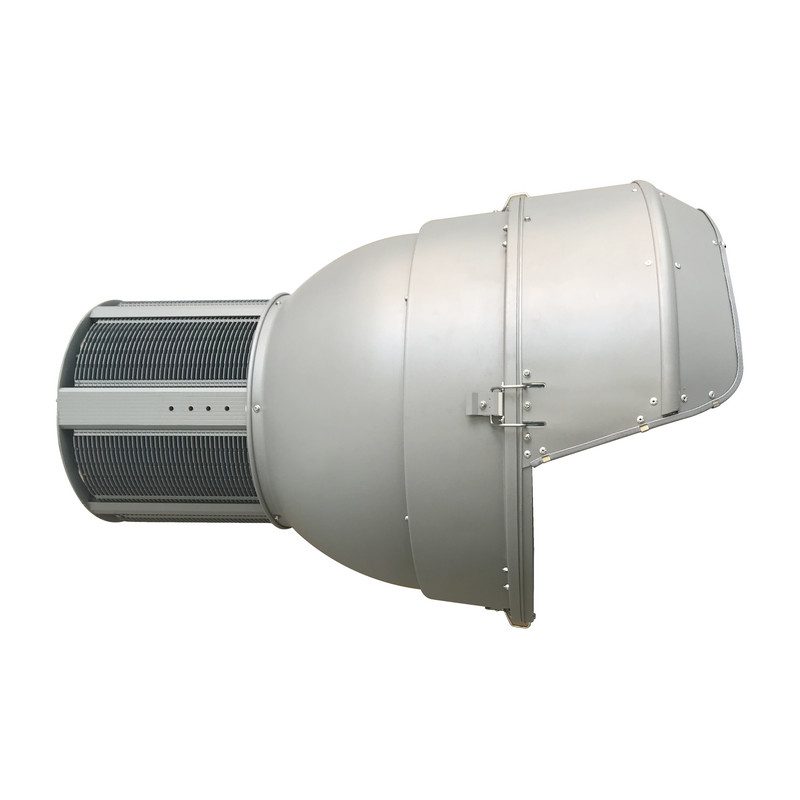

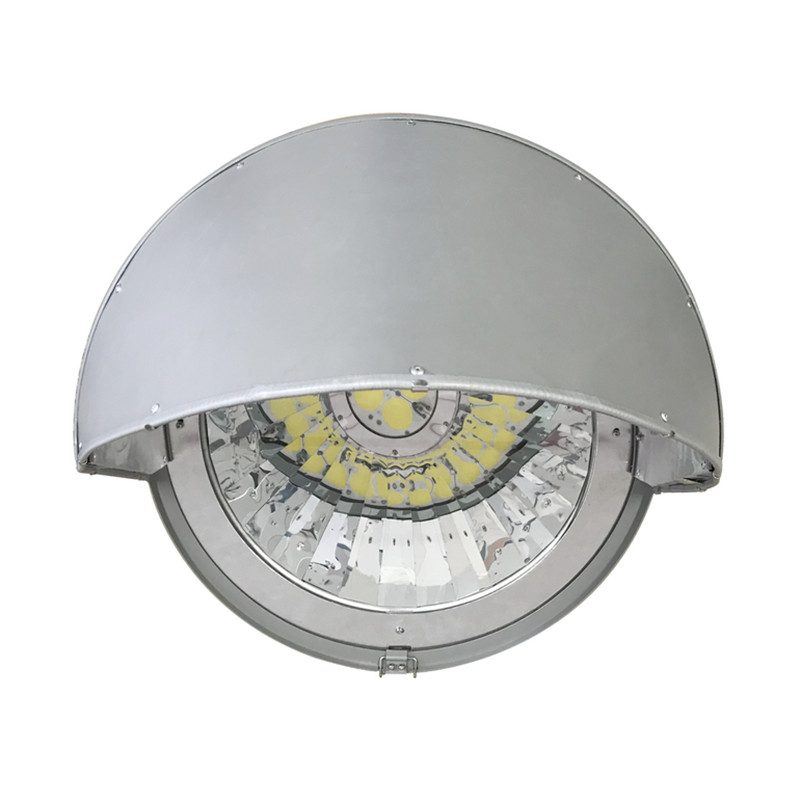

Stadium Lighting SPL series

Total Glare-Free Design: Equipped with a COB light source together with a professionally designed asymmetrical visor to eliminate obvious discomfort to the players.
Precision Light Distribution: Comes with an inner reflector that can be replaced with three different types of visors to suit various kinds of stadiums.
Maintenance-Free Operation: With an internal made premium quality external LED driver and a phosphor ceramic COB light source; ensuring high performance throughout the lifetime of the LED.
High Lumen Output: Can achieve up to 125 lm/W efficacy for bright output at a reasonably low cost.

Additional information

Product Description

The Tennis Court Light Outdoor LED Lighting by KCOB is an efficient system dedicated to all tennis enthusiasts, irrespective of the level of play. 600W and 1000W versions are available, with 15° and 30° beam angles, respectively, while providing a great color wash of the playing area without excessive glare or spill. These intelligent lighting systems are energy-friendly at the same time, affordable for tennis court operators to attain the highest level of performance. Robustly constructed, these lights can be used for outdoor settings, and they do not fail to deliver light to those areas as will be expected always.

PRODUCT FEATURES

Energy Efficiency & Cost Savings: Outdoor Led Tennis Court Lighting is a special one that helps to save electricity and, therefore, reduces running costs, for instance, after 6 hours of usage and an electricity rate of 1. For example, consumers will likely realize serious savings with a fixed tariff of 0 RMB per kilowatt hour.

Lighting type	K-COB STADIUM LIGHTS	Traditional lamps
Power	500w	1500w
Daily electricity consumption(kw/h)	500*6/1000=3kw.h	1500*6/1000=9kw.h
Electricity bill per lamp per day(RMB)	3*1.0=3rmb	9*1.0=3rmb
Electricity bill per lamp yearly(RMB)	365days*3=1095rmb	365days*9=3285rmb
Annual savings in electricity bills per lamp(RMB)	3285-1095=2190rmb

Minimized Glare for Enhanced Play Experience: This system means that more light and energy are provided to the target area, enhancing the visibility and fairness of the playing sessions. The KCOB light structure actually minimizes the transmitted light compared to other SMD sports lights, thus making it suitable for residential compounds with extreme light pollution policies.
Consistent Illumination: It is possible to maintain a constant level of illumination and provide a homogeneous distribution of light for up to 10,000 hours (it is individual) without additional devices. This means there is no gradual transition from initial illuminance to maintaining illuminance, whereby project costs, the number of lamps needed, and power supplies for the same are also cut out.
Professional Light Distribution System: Every light is controlled individually, resulting in energy savings, precise light distribution, and a good reflection of the tennis court.
High Color Rendering: The KCOB lighting system provides high CRI, making the actual color of the tennis court visible to the naked eye. CRI values typically vary from 80 to 90, which means such lights are suitable for telecasts of sports and other events where high picture clarity is needed under artificial lighting

Applications: Outdoor Led Tennis Court Lighting

Tennis Courts: This product is ideal for installation in professionally used and recreational tennis courts, providing an appropriate lighting environment for players and viewers.
Stadiums and Sports Arenas: These are ideal for big sports complex buildings that need consistent light output with little to no glare or spillage.
Residential Areas: This product is especially suitable for use in sports venues located close to residential areas, as these normally require little light pollution and minimal glare.
Outdoor Sports Facilities: This can be applied to basketball and soccer fields and other facilities, such as multi-sports facilities, for use in other outdoor-related sporting activities.

K-COB STADIUM LIGHTING SPLA 600W-1200W LIGHT SOURCE

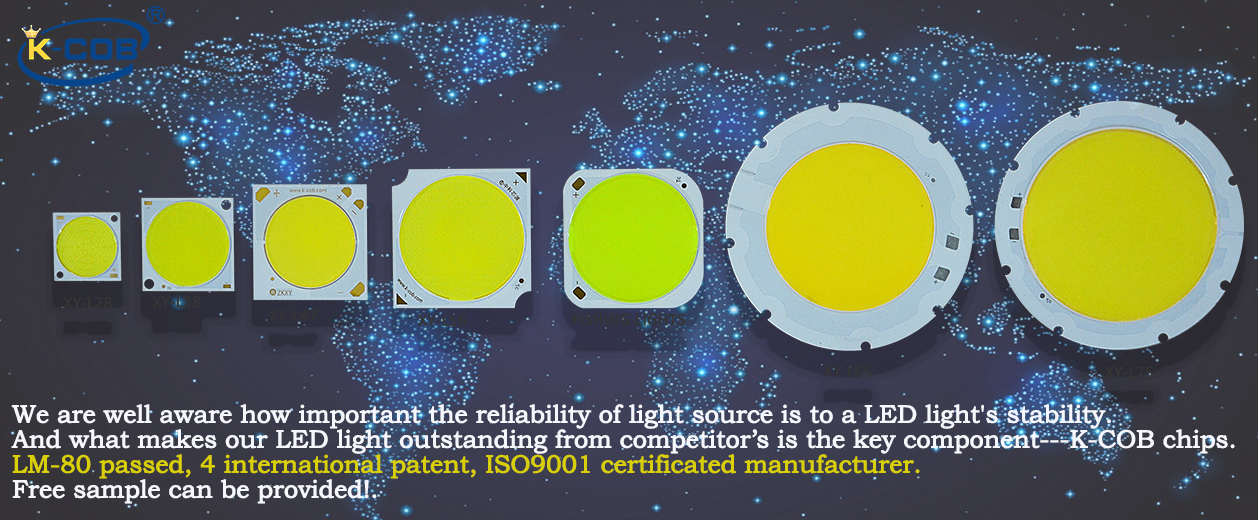

K-COB-LED-CHIPS

K-COB is a unique LED packaging pattern -- by using exclusive Phosphor ceramic to replace traditional silicone and phosphor, this brand new generation LED light source brings better reliability and extremly low lumen decay.

SPECIFICATION

Item No.	Power	Input Voltage	CCT	CRI	Lumen	Efficacy	Beam Angle
SPLA600	600W	AC126 ~ 528V	2200~ 6500K	70~85ra	6600lm	110~130lm/w	15°,25°,etc
SPLA1000	1000W	AC126 ~ 528V	2200~ 6500K	70~85ra	11000lm	105~125lm/w	15°,25°,etc
SPLA1200	1200W	AC126 ~ 528V	2200~ 6500K	70~85ra	132000lm	100~120lm/w	15°,25°,etc

DIMENSIONS DRAWING

PRODUCTION LINE OF SPORTS LIGHTING:

CONTACT US:

The way to ensure that you devise the best possible solution for your situation is to make sure that all those stakeholders are communicating with each other as much as possible.

Your project is unique and each sector has different requirements. For example, sporting associations usually have a lighting level known as ‘the average horizontal illumination level’ which is measured in lux and these can differ enormously between a ‘training level’ and a ‘national level’.
